Product RES-182SA0S-3C13B-H1181
Absolute encoder - Singleturn
Industrial-Line

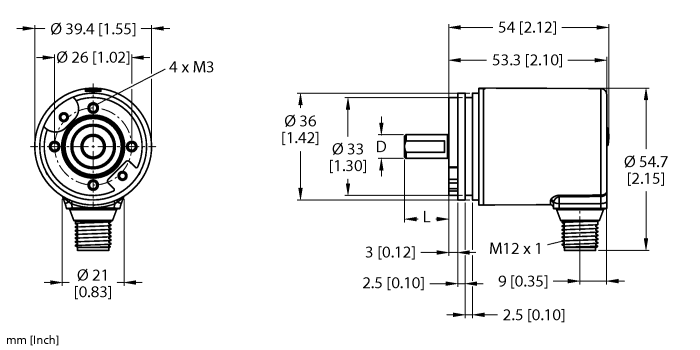

Bestelnummer: 100016342- Synchroflens, Ø 36 mm
- Massieve as, Ø 6,35 mm × 12,5 mm
- Magnetisch meetprincipe
- Asmateriaal: roestvast staal
- Beschermingsklasse IP67 huis- en aszijde
- ‐40…+85 °C
- max. 4000 omw/min (continue werking: 2000 omw/min)
- 10…30 V DC
- SSI, gray
- Connector, M12×1, 8‐polig
- 360° verdeeld in 13 Bit (8192 posities)

Algemene gegevens
EAN | 4047101545333 |
eCl@ss-Code (V5.1.4): | 27270501 -/- encoder, absoluut |
Goederencode | 90318080000 |
Land van herkomst | DE |
Gewicht | 200 g |
Technische gegevens
Encoder-Line | Industrial-Line |
Technologie | magnetisch |
Uitgangstype | Absoluut-singleturn |
Astype | Massieve as |
Asdiameter D (mm) | 6.35 |
Flensdiameter | Ø 36 mm |
Flenstype | synchroflens |
Meetbereik | 0…360° |
Bedrijfsspanning | 10…30 VDC |
Communicatieprotocol | SSi |
Elektrische aansluiting | Connector, M12 × 1 |
Materiaal behuizing | spuitgegoten zink |
Omgevingstemperatuur | -40…+85 °C |
Protection class shaft | IP67 |
Beschermingsgraad | IP67 |
