Product  BI1-EG05-Y1

Inductieve sensor

Bestelnummer: 1003240
    • schroefdraad, M5 x 0,5
    • roestvaststaal, 1.4427 SO
    • DC 2-draads, nom. 8,2 VDC
    • Uitgang volgens EN 60947-5-6 (NAMUR)
    • Kabelaansluiting
    • ATEX-categorie II 1 G, Ex-zone 0
    • ATEX-categorie II 1 D, Ex-zone 20
    • SIL2 (modus voor lage vraag) conform IEC 61508, PL c conform ISO 13849-1 bij HFT0
    • SIL3 (modus voor volledige vraag) conform IEC 61508, PL e conform ISO 13849-1 met redundante configuratie HFT1
#

Algemene gegevens

EAN 4047101144178
eCl@ss-Code (V5.1.4): 27270101 -/- inductieve naderingsschakelaar
Goederencode 85365019000
Land van herkomst PL
Gewicht 40  g

Technische gegevens

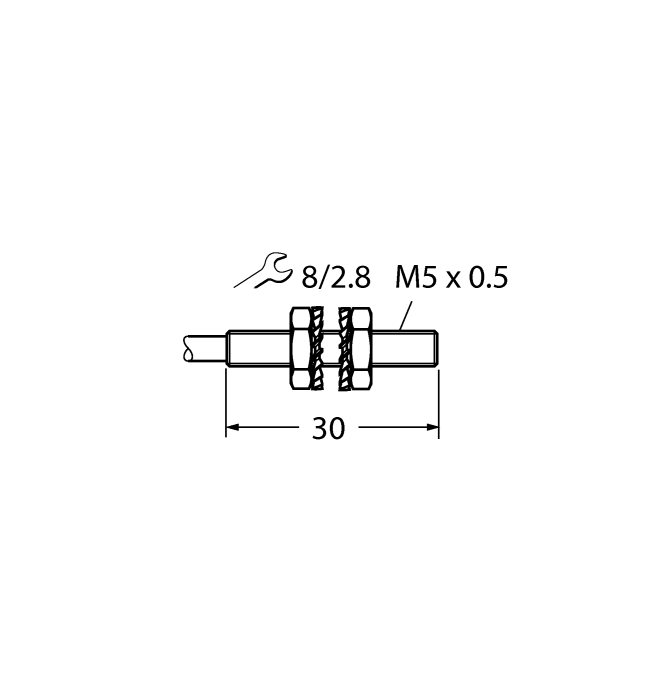

Bouwvorm schroefdraad
Bouwgrootte M5 x 0.5
Nominale schakelafstand 1 mm
Inbouwvoorwaarden Bondig
Bedrijfsspanning nom. 8.2 VDC
Uitgangsfunctie NAMUR
Schakelfrequentie 5.0 kHz
Elektrische aansluiting Kabel
Kabellengte 2.0  m
Materiaal behuizing roestvast staal, 1.4427 SO
Omgevingstemperatuur -25…+70 °C
Beschermingsgraad IP67
Certificaten ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc

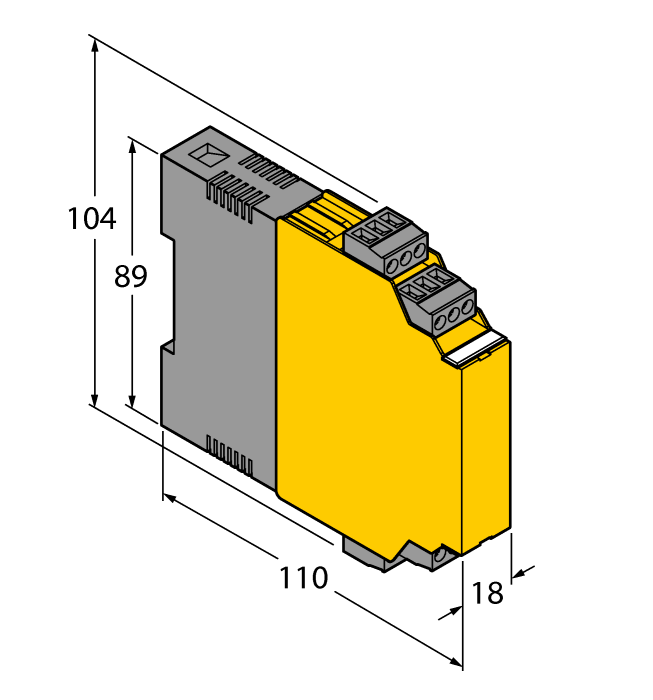

Functietoebehoren

7541232
7580020
