Product BIM-PST-AP6X-V1131
Magneetveldsensor
Voor pneumatische cilinders
Bestelnummer: 46250- rechthoekig, hoogte 16 mm
- actief vlak vooraan
- kunststof, PA12‐GF30
- magneet-inductieve sensor
- DC 3-draads, 10…30 VDC
- N.O., PNP-uitgang
- connector, M8 x 1

Algemene gegevens
EAN | 4047101000375 |
eCl@ss-Code (V5.1.4): | 27270104 -/- magn.-ind. naderingsschakelaar |
Goederencode | 85365019000 |
Land van herkomst | PL |
Gewicht | 19 g |
Technische gegevens
Bouwvorm | Rechthoekig |

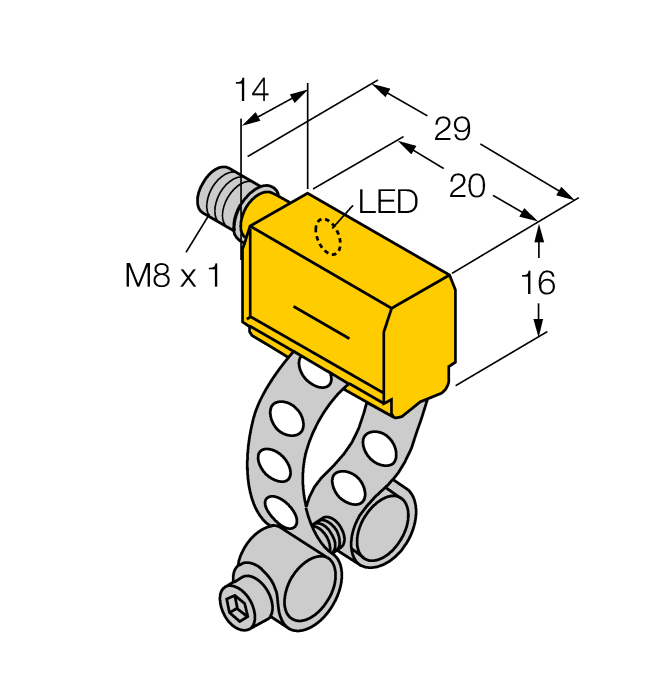

Bouwgrootte | 23 x 14 x 16 mm, PST |
Cilinderbouwvorm | Round cylinder |
Bedrijfsspanning | 10…30 VDC |
Uitgangsfunctie | N.O.-contact, PNP |
Elektrische aansluiting | Connector, M8 × 1 |
Materiaal behuizing | Kunststof, PA12-GF30 |
Omgevingstemperatuur | -25…+70 °C |
Beschermingsgraad | IP67 |
Data Sheets
Montagetoebehoren
![]() |

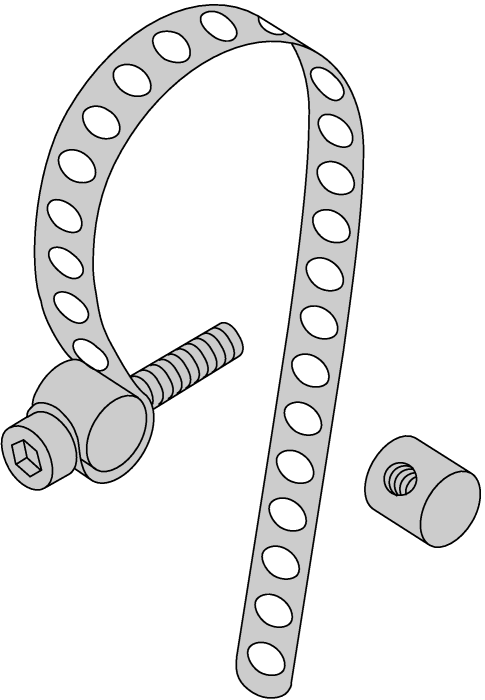

KLP 80-VA
Montage op ronde cilinders; cilinderdiameter 25…80 mm; materiaal: Metaal A2 1.4301 (ASI 304); 2 trekbouten (materiaal: Metaal CuZn, alternatief metaal A2 1.4301 (ASI 304)), cilinderkopschroef M 3 x 20 (DIN 912-A20) |
69654 |
![]() |
KLP 200-VA
Montage op ronde cilinders; cilinderdiameter 80…200 mm; materiaal: Metaal A2 1.4301 (ASI 304); 2 trekbouten (materiaal: Metaal CuZn, alternatief metaal A2 1.4301 (ASI 304)), cilinderkopschroef M 3 x 20 (DIN 912-A20) |
6965302 |
