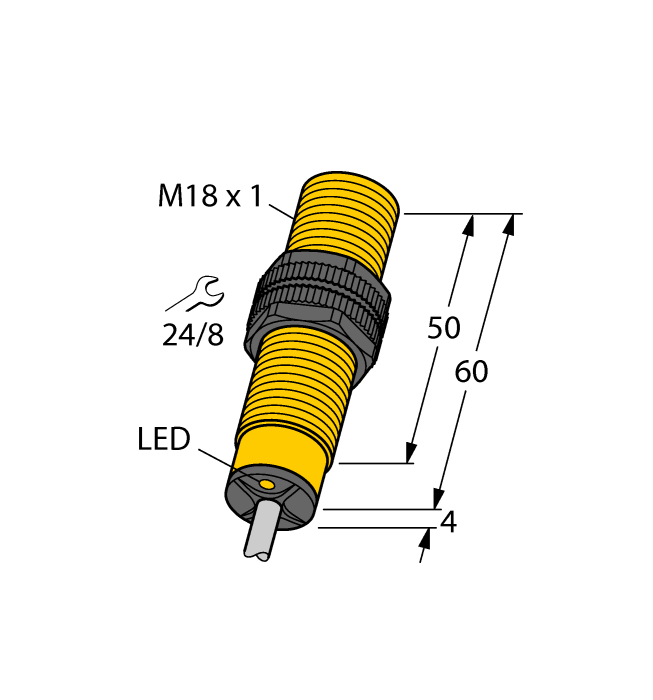

Product  BI5-S18-AZ3X

Inductieve sensor

Bestelnummer: 43504
    • schroefdraad, M18 x 1
    • kunststof, PA12-GF30
    • AC 2-draads, 20...250 VAC
    • DC 2-draads, 10...300 VDC
    • N.O.-contact
    • kabelaansluiting
#

Algemene gegevens

EAN 4047101095081
eCl@ss-Code (V5.1.4): 27270101 -/- inductieve naderingsschakelaar
Goederencode 85365080000
Land van herkomst PL
Gewicht 103  g

Technische gegevens

Bouwvorm schroefdraad
Bouwgrootte M18 x 1
Nominale schakelafstand 5 mm
Inbouwvoorwaarden Bondig
Bedrijfsspanning 20…250 VAC / 10…300 VDC
Uitgangsfunctie N.O.-contact, tweedraads
Schakelfrequentie 0.020 kHz
Elektrische aansluiting Kabel
Kabellengte 2.0  m
Materiaal behuizing Kunststof, PA12-GF30
Omgevingstemperatuur -25…+70 °C
Beschermingsgraad IP67

Montagetoebehoren

6945102
6947214
6945004
6901320
